7 Step ADAS, simplify ADAS calibrations
ADAS calibrations might sound super tricky, like a puzzle that’s hard to solve. But guess what? We’ve made it much easier with just 7 simple steps. Now with 7 Step ADAS, you can get the job done quicker & easier. Translating to more earnings.
What is ADAS?
ADAS, or Advanced Driver Assistance Systems, are electronic systems in a vehicle that use advanced technologies to assist the driver. Specifically, these systems enhance vehicle safety by helping to prevent accidents before they occur.
Key features of ADAS sensors include:
- Adaptive Cruise Control: Automatically adjusts the vehicle speed to maintain a safe distance from vehicles ahead.
- Lane Keeping Assistance: Monitors road markings to help keep the vehicle within its lane.
- Collision Avoidance: Applies brakes or adjusts steering to prevent collisions.
- Parking Assistance: Offers guidance or automatic controls for safe parking.
Moreover, ADAS relies on inputs from various data sources, including radar, cameras, lasers, and ultrasonic sensors, to create a detailed and accurate detection area around the vehicle. Consequently, this not only improves safety but also enhances the overall driving experience by reducing the driver’s workload.
In today’s world, where roads are busier than ever, ADAS is not just a luxury—it’s a critical component that contributes to safer, smarter driving.
ADAS Acronyms
360 Camera – 360 Degree Parking View
ADAS – Advanced Driver-Assistance System
AEB – Advanced Emergency Braking
ASIL – Automotive Safety Integrity Level
BSM – Blind Spot Monitor
E/E – Electrical and Electronic
ESC – Electronic Stability Control
FCW – Forward Collision Warning
FOV – Field of View
LDW – Lane Departure Warning
LKA – Lane Keep Assist
OE | OEM – Original Equipment Manufacturer
RCTA – Rear Cross Traffic Alert
Automation Levels
Level 0: No driving automation
Level 1: Driver assistance
Level 2: Partial driving automation
Level 3: Conditional driving automation
Level 4: High driving automation
Level 5: Full driving automation
What ADAS Hardware Do You Need to Get Started?
To perform ADAS calibrations for most makes and models, you’ll need a comprehensive set of equipment. Although there are many options available, we’ll focus on the essentials you’ll need to establish a reliable and effective setup.
Your ADAS Kit Should Include:
- Diagnostic Software: Essential for accessing vehicle modules and performing necessary updates. Additionally, OEM equipment is preferred for compatibility and reliability.
- Calibration Frame: Simplifies the setup process, especially when using the 7 Step ADAS method. Moreover, you can economize by excluding heavy and often unnecessary wheel adapters, unless your specific ADAS unit requires them for functionality.
- Broad Instrument Coverage: Ensure you have tools that meet or exceed OE specifications. This is crucial for handling a wide range of vehicles. However, if you specialize in specific brands, like Honda for example, your tooling requirements will be significantly reduced, making it easier to get started.
What Is 7 Step ADAS ?
The 7 Step ADAS Calibration Method is a streamlined approach designed to enhance the accuracy and efficiency of calibrating Advanced Driver Assistance Systems (ADAS) in vehicles. Utilizing a combination of simple yet precise tools, this method ensures that vehicle calibration is both straightforward and effective, suitable for a wide range of vehicles and ADAS features.
Key Components of the 7 Step Method:

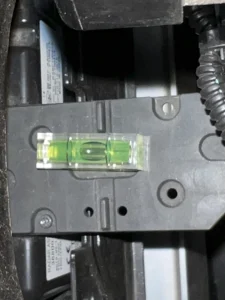

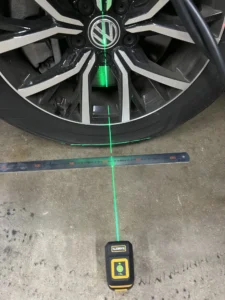

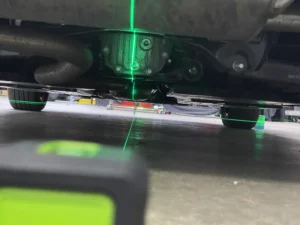

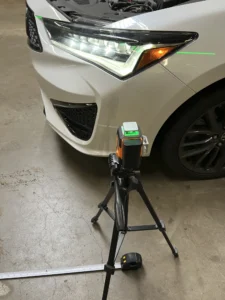

- Baseline Box Setup: Using basic lasers and targets, we create a baseline box around the vehicle. This box serves as the foundational guideline for all subsequent calibrations, ensuring every adjustment is made with reference to a precisely defined area.

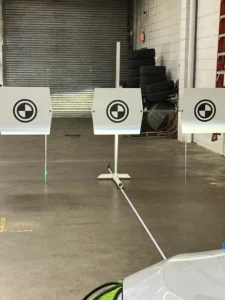

- Tight Line Alignment: The baseline box provides a series of very tight lines that are crucial for accurate target placement. This precision is vital for the proper functioning of ADAS features such as lane keeping, adaptive cruise control, and collision avoidance.

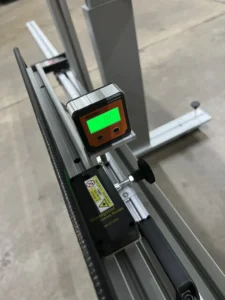

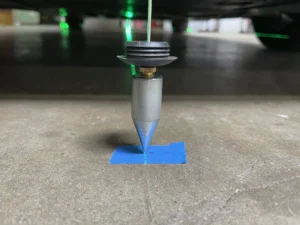

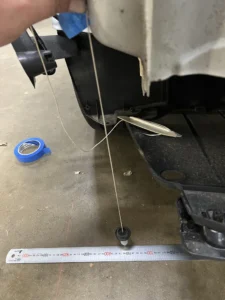

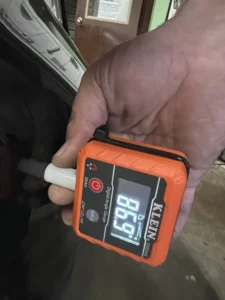

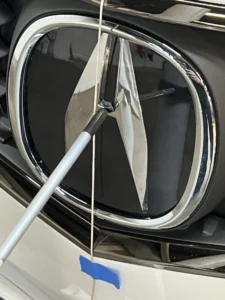

- Lightweight Tools: Instead of heavy, cumbersome equipment, our method uses lightweight tools including lasers, square rulers, and plumb bobs. These tools are easy to handle and transport, facilitating quick setup and breakdown.

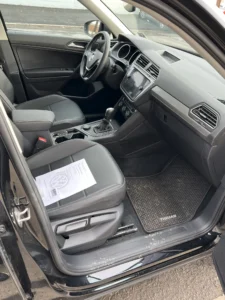

How Does 7 Step ADAS Work?

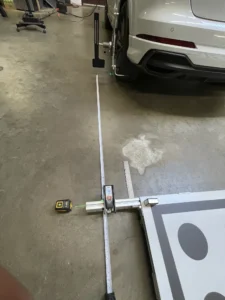

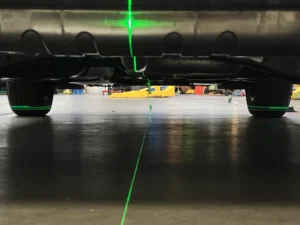

- Establish the Baseline: Set up the baseline box using lasers to outline the perimeter around the vehicle.

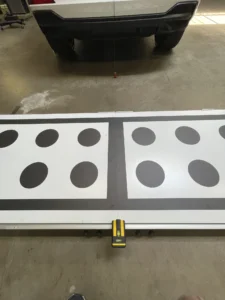

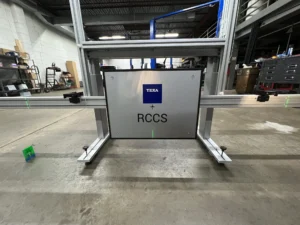

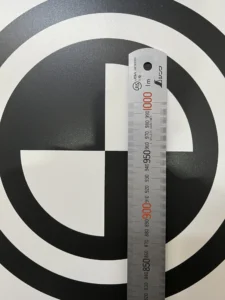

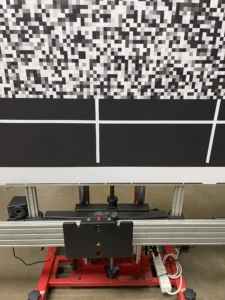

- Align the Targets: Place the calibration targets within the baseline box according to the specific requirements of each ADAS feature.

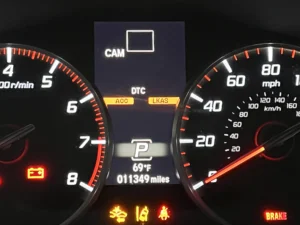

- Perform Calibration: With the vehicle and targets precisely aligned, perform the necessary ADAS calibrations.
- Verify Accuracy: Check the alignment using the tight lines from the baseline box to ensure that each calibration point is correctly set.
Benefits of Using the 7 Step Method:
- Speed: Significantly reduces the time required for ADAS calibrations.
- Accuracy: Ensures high precision in calibration, critical for the effective functioning of ADAS.
- Cost-Effective: Minimizes the use of expensive equipment and maximizes the use of shop space and resources.
- Versatility: Adaptable to a wide variety of vehicles and calibration types, making it a universal solution for automotive shops.
Learn About Performing ADAS Services From These Videos
Search OE Data For Calibrations
Join us as we navigate Toyota’s paid database to uncover crucial repair information for a 2018 Toyota Camry following a collision. This tutorial showcases a simplified, yet effective search strategy that can be applied to various automotive information systems.
7 Step ADAS Process, For Accurate Calibrations
While we feature a 2023 Toyota RAV4, watch how our simple process and 9 tools, lead to a faster way to precision, accurate alignments.
𝑭𝒂𝒔𝒕 𝑭𝒊𝒙𝒆𝒔: Ditch long setups. We’re all about quick, sharp alignment.
What’s a Dynamic Calibration?
We’re embarking on a calibration journey with a 2023 Honda CR-V that recently took a minor hit upfront. Our mission? To navigate through Honda’s millimeter-wave radar updates and dive into the dynamic driving calibration process.
